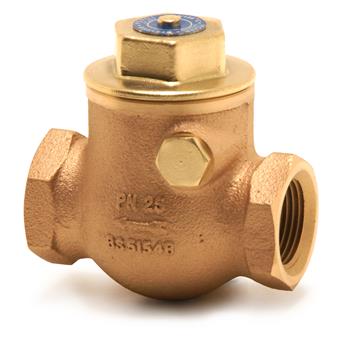

Check valves in the Pegler Commercial range are designed for long trouble free service. All check valves are designed to prevent back flow of fluids in pipe lines and are self acting. They are used for low velocity services, especially liquids and infrequent change of direction in back flow prevention.
Check valves in the Pegler Commercial range are designed for long trouble free service. All check valves are designed to prevent back flow of fluids in pipe lines and are self acting. They are used for low velocity services, especially liquids and infrequent change of direction in back flow prevention.
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 122007 | Rp1/2″ (DN15) | 0.4 kg | 65x25x60 mm | unpackaged (1 pce) | 05013866013836 |
| 122008 | Rp3/4″ (DN20) | 0.61 kg | 80x55x80 mm | bag (1 pce) | 05013866013843 |
| 122009 | Rp1″ (DN25) | 0.87 kg | 90x40x85 mm | unpackaged (1 pce) | 05013866013850 |
| 122010 | Rp1 1/4″ (DN32) | 1.28 kg | 110x40x100 mm | unpackaged (1 pce) | 05013866013867 |
| 122011 | Rp1 1/2″ (DN40) | 1.64 kg | 110x70x110 mm | unpackaged (1 pce) | 05013866013874 |
| 122012 | Rp2″ (DN50) | 2.68 kg | 170x95x130 mm | carton (1 pce) | 05013866002922 |
| 122013 | Rp2 1/2″ (DN65) | 3.52 kg | 180x105x160 mm | carton (1 pce) | 05013866002939 |
| 122014 | Rp3″ (DN80) | 4.48 kg | 235x105x195 mm | box (1 pce) | 05013866002946 |
| 122015 | Rp4″ (DN100) | 8.38 kg | 210x120x210 mm | bag (1 pce) | 05013866002953 |
| item number | size | d1 | DN1 | l1 | z1 | slw1 | d2 | DN2 | l2 | z2 | slw2 | V | U | a |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 122007 | Rp1/2″ (DN15) | 30.0 | DN15 | 31 | 22 | 30 | 30.0 | DN15 | 31 | 22 | 30 | 45 | 32 | 90 |
| 122008 | Rp3/4″ (DN20) | 36.0 | DN20 | 38 | 27 | 36 | 36.0 | DN20 | 38 | 27 | 36 | 55 | 38 | 90 |
| 122009 | Rp1″ (DN25) | 43.0 | DN25 | 42 | 30 | 37 | 43.0 | DN25 | 42 | 30 | 37 | 50 | 45 | 90 |
| 122010 | Rp1 1/4″ (DN32) | 52.0 | DN32 | 47 | 34 | 45 | 52.0 | DN32 | 47 | 34 | 45 | 65 | 54 | 90 |
| 122011 | Rp1 1/2″ (DN40) | 62.0 | DN40 | 47 | 33 | 54 | 62.0 | DN40 | 47 | 33 | 54 | 65 | 64 | 90 |
| 122012 | Rp2″ (DN50) | 75.0 | DN50 | 63 | 44 | 65 | 75.0 | DN50 | 63 | 44 | 65 | 90 | 77 | 90 |
| 122013 | Rp2 1/2″ (DN65) | 95.0 | DN65 | 74 | 53 | 82 | 95.0 | DN65 | 74 | 53 | 82 | 111 | 97 | 90 |
| 122014 | Rp3″ (DN80) | 114.0 | DN80 | 88 | 62 | 99 | 114.0 | DN80 | 88 | 62 | 99 | 125 | 116 | 90 |
| 122015 | Rp4″ (DN100) | 140.0 | DN100 | 111 | 79 | 121 | 140.0 | DN100 | 111 | 79 | 121 | 130 | 142 | 90 |
| color | bronze |
|---|---|
| materials | bronze (EN CC499K) |
| finishing | none |
| manufacturer | Pegler Yorkshire |
| shape | straight (0º) |
| connection type | Rp – female thread cylindrical (BSPT) |
| pressure rating (PN) | PN 25 |
| sealing | Metal sealing |
| label | value |
|---|---|
| ETIM class | EC011469 Check valve |
| Housing material | Bronze |
| Material quality | Bronze (Rg 5) |
| Surface protection | Untreated |
| Connections | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Article compression class | PN 25 |
| Flange compression class | PN 25 |
| Angle of non-return valve | 0° |
| Medium temperature (continuous) | -10°C – 180°C |
| Medium temperature (continuous) (imperial) | 14°F – 356°F |
| Max. operating pressure at 20 °C | 25bar |
| Max. operating pressure at 20 °C (imperial) | 362.59psi |
| FM quality mark | No |
| UL quality mark | No |
| ULC quality mark | No |
| LPCB quality mark | No |
| Suitable for central heating water | Yes |
| Certified by SVGW for water | No |
| Certified according to SVGW for gas | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| KIWA certified | No |
