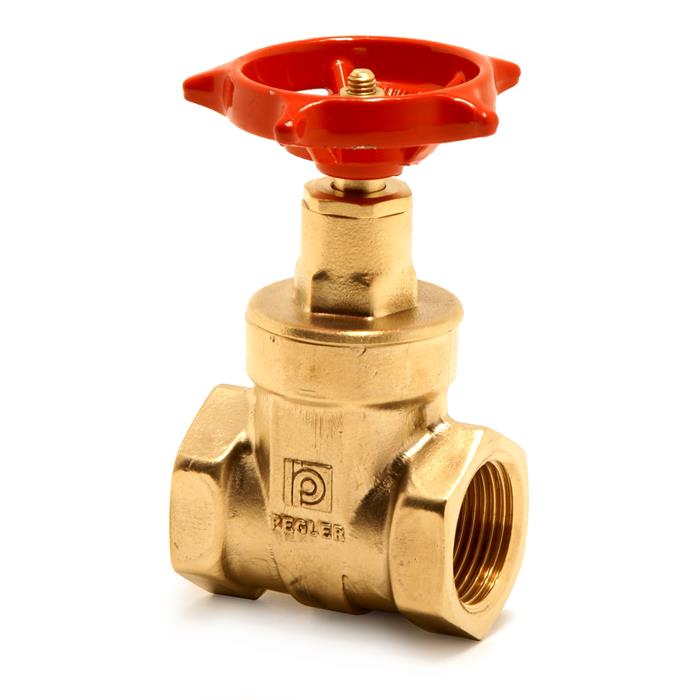

color : brass
materials : brass (CW617N)
finishing : none
manufacturer : Aalberts integrated piping systems Ltd (Pegler)
shape : straight
connection type : Rc – female thread gas conical (BSPT)
pressure rating (PN) : PN 16
sealing : NBR (Nitrile)
color : brass
materials : brass (CW617N)
finishing : none
manufacturer : Aalberts integrated piping systems Ltd (Pegler)
shape : straight
connection type : Rc – female thread gas conical (BSPT)
pressure rating (PN) : PN 16
sealing : NBR (Nitrile)
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 203007 | Rp1/2 (DN15) | 0.32 kg | 50x50x100 mm | box (10 pce) | 05013866004230 |
| 203008 | Rp3/4 (DN20) | 0.45 kg | 20x55x110 mm | box (10 pce) | 05013866004247 |
| 203009 | Rp1 (DN25) | 0.74 kg | 50x70x155 mm | box (5 pce) | 05013866004254 |
| 203010 | Rp1 1/4 (DN32) | 1.08 kg | 20x70x155 mm | box (5 pce) | 05013866004261 |
| 203011 | Rp1 1/2 (DN40) | 1.38 kg | 30x75x170 mm | box (2 pce) | 05013866004278 |
| 203012 | Rp2 (DN50) | 2.34 kg | 40x90x210 mm | box (2 pce) | 05013866004285 |
| 203013 | Rp2 1/2 (DN65) | 3.54 kg | 130x160x250 mm | bag (1 pce) | 05013866004292 |
| 203014 | Rp3 (DN80) | 4.96 kg | 110x140x350 mm | bag (1 pce) | 05013866004308 |
| 203015 | Rp4 (DN100) | 8.66 kg | 135x135x370 mm | bag (1 pce) | 05013866004315 |

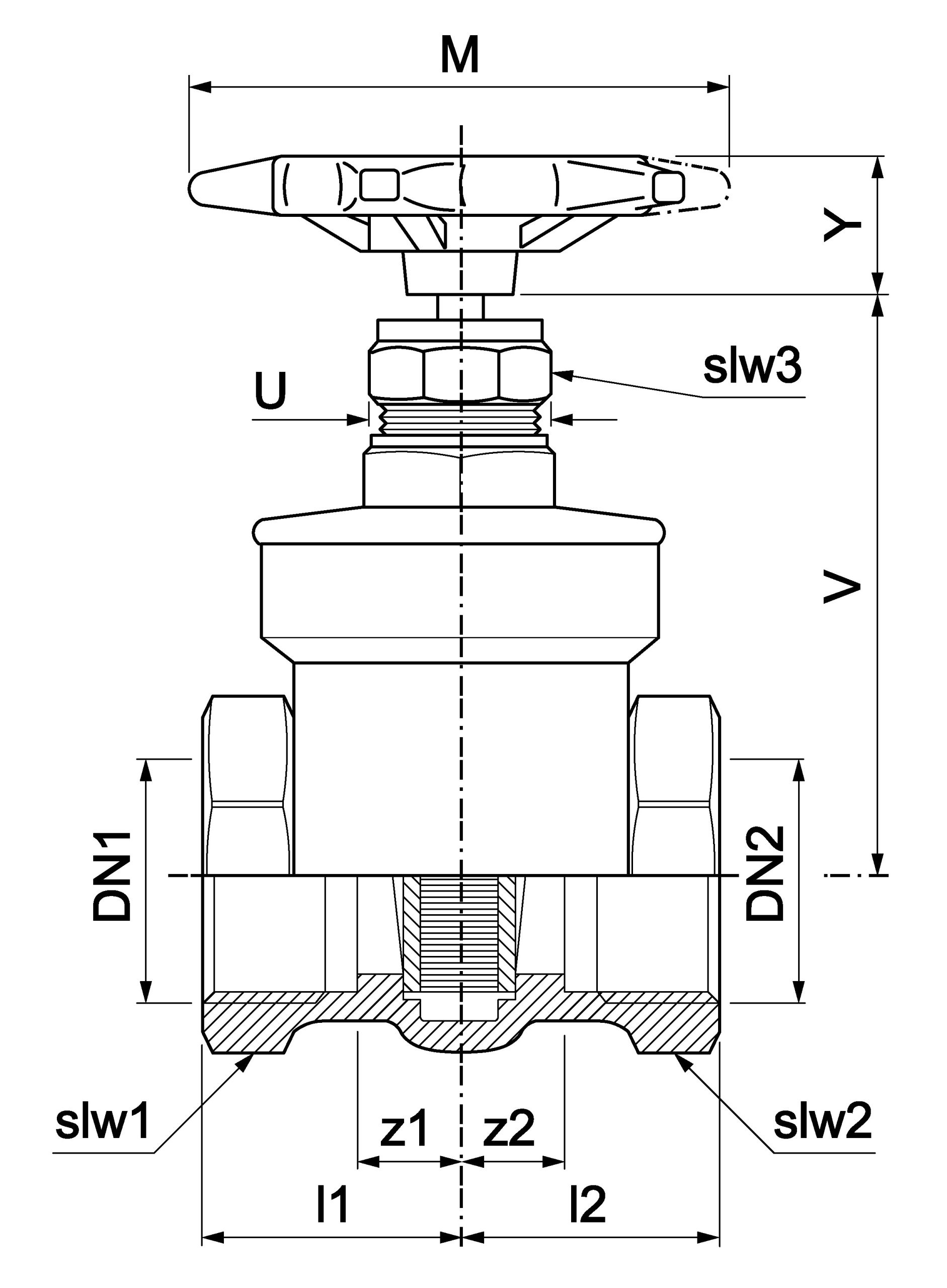

| item number | size | d1 | DN1 | l1 | z1 | slw1 | d2 | DN2 | l2 | z2 | slw2 | M | H | Y | V | U | a |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 203007 | Rp1/2 (DN15) | 34.0 | DN15 | 26 | 16 | 29 | 34.0 | DN15 | 26 | 16 | 15 | 62 | 85 | 11 | 66 | 38 | 90 |
| 203008 | Rp3/4 (DN20) | 40.0 | DN20 | 28 | 17 | 35 | 40.0 | DN20 | 28 | 17 | 17 | 67 | 95 | 12 | 72 | 43 | 90 |
| 203009 | Rp1 (DN25) | 46.0 | DN25 | 33 | 20 | 40 | 46.0 | DN25 | 33 | 20 | 20 | 78 | 110 | 14 | 82 | 50 | 90 |
| 203010 | Rp1 1/4 (DN32) | 55.0 | DN32 | 37 | 22 | 48 | 55.0 | DN32 | 37 | 22 | 24 | 87 | 125 | 16 | 92 | 58 | 90 |
| 203011 | Rp1 1/2 (DN40) | 65.0 | DN40 | 38 | 23 | 56 | 65.0 | DN40 | 38 | 23 | 28 | 91 | 145 | 18 | 101 | 66 | 90 |
| 203012 | Rp2 (DN50) | 78.0 | DN50 | 45 | 27 | 67 | 78.0 | DN50 | 45 | 27 | 34 | 108 | 170 | 20 | 117 | 78 | 90 |
| 203013 | Rp2 1/2 (DN65) | 96.0 | DN65 | 51 | 31 | 83 | 96.0 | DN65 | 51 | 31 | 42 | 122 | 205 | 20 | 137 | 95 | 90 |
| 203014 | Rp3 (DN80) | 115.0 | DN80 | 57 | 34 | 100 | 115.0 | DN80 | 57 | 34 | 50 | 136 | 240 | 20 | 156 | 111 | 90 |
| 203015 | Rp4 (DN100) | 140.0 | DN100 | 67 | 40 | 121 | 140.0 | DN100 | 67 | 40 | 61 | 160 | 290 | 20 | 185 | 134 | 90 |
| color | brass |
|---|---|
| materials | brass (CW617N, CC754S) |
| finishing | none |
| manufacturer | Pegler Yorkshire |
| shape | straight (0º) |
| connection type | Rc – female thread gas conical (BSPT) |
| pressure rating (PN) | PN 20 |
| sealing | PTFE |
| label | value |
|---|---|
| ETIM class | EC010163 Gate valve |
| Housing material | Brass |
| Connection 1 | Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1) |
| With coupling connection 1 | No |
| Connection 2 | Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1) |
| With coupling connection 2 | No |
| Article compression class | PN 20 |
| FM quality mark | No |
| UL quality mark | No |
| ULC quality mark | No |
| LPCB quality mark | No |
| Medium temperature (continuous) | -10°C – 180°C |
| Medium temperature (continuous) (imperial) | 14°F – 356°F |
| Surface protection | Untreated |
| Operation | Hand wheel |
| With position indicator | No |
| Spindle and/or hand wheel rising | No |
| With waste fitting | No |
| VdS quality mark | No |
| KIWA certified | No |
| Gastec QA mark | No |
| Gastec QA – AR 214 (H2) | No |
