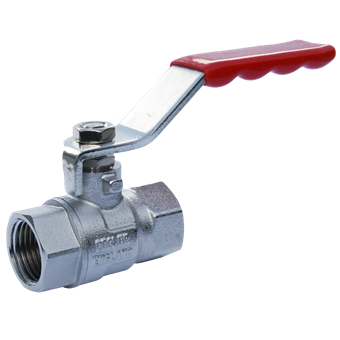

The PB100 valve is a compact, easy to operate, quarter turn ball valves in the Pegler range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids or gases in pipe lines.
The PB100 valve is a compact, easy to operate, quarter turn ball valves in the Pegler range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids or gases in pipe lines.
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 270001 | Rp1/2 (DN15) Cr | 0.21 kg | 130x25x45 mm | box (10 pce) | 05013866038754 |
| 270002 | Rp3/4 (DN20) Cr | 0.27 kg | 130x30x60 mm | box (10 pce) | 05013866038761 |
| 270003 | Rp1 (DN25) Cr | 0.43 kg | 145x40x70 mm | box (5 pce) | 05013866038778 |
| 270004 | Rp1 1/4 (DN32) Cr | 0.63 kg | 185x45x80 mm | box (5 pce) | 05013866038785 |
| 270005 | Rp1 1/2 (DN40) Cr | 0.85 kg | 190x55x95 mm | box (2 pce) | 05013866038792 |
| 270006 | Rp2 (DN50) Cr | 1.39 kg | 220x65x130 mm | box (2 pce) | 05013866038808 |
| item number | size | DN1 | l1 | z1 | slw1 | DN2 | l2 | z2 | slw2 | M1 | M2 | E | H | h2 | Y | V | U | a |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 270001 | Rp1/2 (DN15) Cr | 1/2″ (DN15) | 25 | 13 | 24 | 1/2″ (DN15) | 27 | 15 | 24 | 8 | 100 | 24 | 52 | 18 | 24 | 28 | 17 | 90 |
| 270002 | Rp3/4 (DN20) Cr | 3/4″ (DN20) | 28 | 16 | 30 | 3/4″ (DN20) | 32 | 18 | 30 | 8 | 100 | 24 | 56 | 18 | 24 | 32 | 17 | 90 |
| 270003 | Rp1 (DN25) Cr | 1″ (DN25) | 31 | 16 | 37 | 1″ (DN25) | 40 | 22 | 37 | 10 | 109 | 25 | 62 | 19 | 25 | 37 | 21 | 90 |
| 270004 | Rp1 1/4 (DN32) Cr | 1 1/4″ (DN32) | 35 | 18 | 46 | 1 1/4″ (DN32) | 46 | 27 | 46 | 11 | 133 | 25 | 70 | 19 | 25 | 45 | 23 | 90 |
| 270005 | Rp1 1/2 (DN40) Cr | 1 1/2″ (DN40) | 43 | 26 | 53 | 1 1/2″ (DN40) | 46 | 28 | 53 | 12 | 133 | 25 | 74 | 20 | 25 | 49 | 23 | 90 |
| 270006 | Rp2 (DN50) Cr | 2″ (DN50) | 54 | 32 | 65 | 2″ (DN50) | 56 | 33 | 65 | 12 | 150 | 25 | 87 | 20 | 25 | 62 | 25 | 90 |
| color | chrome |
|---|---|
| materials | brass (CW617N) |
| finishing | chromed |
| manufacturer | Pegler Yorkshire |
| shape | straight (0º) |
| connection type | Rc – female thread gas conical (BSPT) |
| pressure rating (PN) | PN 25 |
| sealing | PTFE |
| label | value |
|---|---|
| ETIM class | EC011343 Ball valve |
| Housing material | Brass |
| Material quality | CuZn40Pb2 (CW617N) |
| Surface protection housing | Chromium-plated |
| Material ball seal | Polytetrafluoroethylene (PTFE) |
| Material ball | Brass |
| Material spindle | Brass |
| Material primary spindle seal | Polytetrafluoroethylene (PTFE) |
| Connection 1 | Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1) |
| With coupling connection 1 | No |
| Connection 2 | Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1) |
| With coupling connection 2 | No |
| Sealing | Polytetrafluoroethylene (PTFE) |
| Article compression class | PN 25 |
| Flange compression class | PN 25 |
| With drain valve | No |
| With drain possibility (connection) | No |
| With non-return valve | No |
| With filter | No |
| With thermometer | No |
| Model | Straight |
| With insulation shell | No |
| FM quality mark | No |
| UL quality mark | No |
| ULC quality mark | No |
| LPCB quality mark | No |
| Medium temperature (continuous) | -10°C – 120°C |
| Medium temperature (continuous) (imperial) | 14°F – 248°F |
| Medically clean | No |
| Grease-free | No |
| Operation | Lever handle |
| Housing construction | 1-part |
| Full bore | Yes |
| Angle of the valve | 0° |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| KIWA certified | No |
| color | chrome |
|---|---|
| materials | brass (CW617N) |
| finishing | chromed |
| manufacturer | Pegler Yorkshire |
| shape | straight (0º) |
| connection type | Rc – female thread gas conical (BSPT) |
| pressure rating (PN) | PN 25 |
| sealing | PTFE |
